Monday 19 October 2020

WAF Options

Overview:  HTTP Traffic from users to web sites and API's need to have WAF protection.  Both Azure and AWS have good services to protect your API's and applications.  There is also the option to use a dedicated WAF Services.  When protecting large organizations with hybrid cloud providers then options like Barracuda, Imperva/Encapusla, F5 and Cloudflare are good enterprise level options.  Fundamentally, a WAF sits as an intermediary between the user and the resource they are requesting using HTTP.  I like to set my highest priority rule to DENY all HTTP & HTTPS traffic, then i specifically open the rules that i want to flow thru, a lot people do it the other way around in smaller implementations.

WAF Options:
  • Azure WAF simple in 1 region for a WAF especially with APIM and if you are an Azure customer simple got for an Azure Application Gateway with WAF enabled.  DDoS is s separate service that can be integrated before Azure WAF or Azure Firewall.  Cheaper per IP SKU option for specific IP adrs.
  • Azure Front Door WAF is pretty amazing, Cloudflare is historically the leader with similar functionality.  On Microsoft Azure the main two options for WAF are Front Door WAF (Best, most expensive) and Azure Application Gateway WAF.
  • Competitor  options: Barracuda WAF SaaS Service or Any software firewall KEMP, F5, Check Point, Fortinet/Fortigate, Cloudflare WAF, Akamai, AWS WAF, AWS Network Firewall, Cloud Armor is GCPs WAF I believe, ....
  • Check WAF service has protection at least for DDoS, XSS, SQL injection attacks, SSL Termination if you need it, Managed RuleSets.
  • AWS WAF is for web traffic (layer 7), there is a separate AWS Shield service that is used for DDos attacks.  AFS can be applied at a Application Load Balancer, Amazons API Gateway, and Amazon CloudFront.  With AWS WAF you also get Shield (standard free).  Shield adds advanced features and the standard version that is always included by default with AWS WAF has monitoring and DDoS protection.
  • Barracuda WAF is a SaaS Service that has worked fairly well for me.  Has a fair amount of options and rules.  Has add-ons like anti-virus scanning.
  • Imperva WAF was previously called Incapsula WAF, that provides a SaaS WAF service including Smart DDoS (block dodgy traffic and passes thru good requests), API Security, SQL injections, Xss.  Multiple data centers around the world.

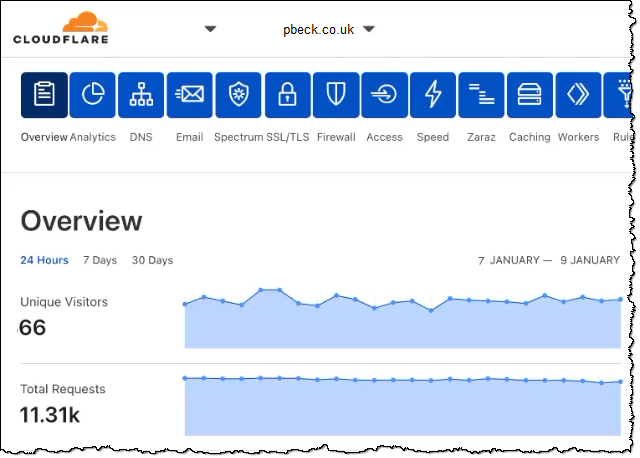

  • Cloudflare is a Secure access service edge (SASE).  Cloudflare provides a WAF service at hundreds of endpoints around the globe (for instance there are 5 Cloudflare endpoints in Australia).  WAF functionality like SSL, DDoS (L7), customer rule e.g. rate limiting, OWASP rules applied, "api protection", et al. is done close to the user request (nice low latency) and then if successful it is pushed to the backend.



Last Updated: 2022-03-15

Monday 24 August 2020

AWS vs Azure services offering comparison for Solution Architects

Overview: Microsoft provides a useful list that allows me to know AWS services aligned to Azure Services.  This is pretty useful if you know 1 platform considerably better than another to quickly figure out your options on either AWS or Azure.

My Service comparison notes:

Amazon CloudWatch - same as Azure Monitor.

Amazon Relational Database Service (RDS) – SQL Server, Oracle, MySQL, PostGress and Aurora (Amazon’s proprietary database).

Azure SQL lines up with Amazon's RDS SQL Server Service.  Although Aurora is probably also worth the comparison as it's AWS's native DB option.

Amazon DynomoDB – Same as CosmosDB – NoSQL database.

AWS API Gateway - Azure API Management

Amazon Redshift is the data warehouse.  Can be encrypted and isolate.  Support Petabytes of data.

Amazon ElastiCache run Redis cache and MemCached (simple cache).

AWS Lamda – Azure Functions. i.e. Serverless.

AWS Elastic Beanstalk – Platform for deploying and scaling web apps & Services.  Same as Azure App services.

Amazon SNS – Pub/Sub model – Azure Event Grid.

Amazon SQS – Message queue.  Same as Azure Storage Queues and Azure Service Bus.

Amazon Step Functions – Workflow. Same as logic apps

AWS Snowball – Same as Azure Box.  Physically copy and transport to data centre for upload.

Virtual Private Cloud (VPC) – Azure virtual network

Amazon AppStream - Azure VDI (Virtual desktop) I think.

Amazon QuickSight - Power BI (Tableau Business Intelligence).

AWS CloudFormations - ARM and Bicep

Tip: I am glad that I did the AWS Certified Cloud Practitioner exam as it helped my understand of the AWS offering which has been very useful in large integration projects.  I have worked with AWS IaaS (EC2, API gateway and S3 historically).  Like Azure, there are a lot of Services and features.  Basically, there are equivilant services for Azure & AWS.  It may be a 2-to-1 service offering or it is not something offered by the cloud provider.

Sunday 23 August 2020

AWS vs Azure vs GCP Comparison

Overview:  I predominately use Azure & Microsoft for all my cloud services.


I have installed multiple SharePoint farms and setups on AWS EC2 instances and I'm currently preparing for the Cloud Practitioner AWS exam.  I have used Google for authentication, SaaS nut not as a IaaS offering.  I'm also a huge fan of Heroku which is great for PaaS and I used this to host my game built for Facebook games.  I've also seen IBM's cloud offering a few years ago.  For me it is too niche and not as feature rich.  So basically I understand Azure's offering well so I found this comparison pretty useful.

My Thoughts:  The contenders:  I really like Heroku for it's simplicity.  I feel for a small Indie developer or company, Heroku has a good free and cheap simple billing options.  GCP, I really can't comment from a good position of knowledge but from what I've used, I like GCP.  GCP is the third biggest Cloud provider.  As a large organisation, I'd only consider the big three: Microsoft Azure, AWS, and GCP to be our cloud partner.  Multi-cloud partner is a demand from some organisations, it's truely extra expensive.  Azure uses ARM templates and has many options for provisioing the IAAS, PaaS offerings.  If you are thinking multi-cloud consider Terraform by Hashicorp for IaC.  There is also the concept of Click-Ops (sic) which allows you to click thru the UI of the management of the Cloud services to get the the desired architecture, this is fine for simple small architecture but you can't do this at any scale or agility and it's super error prone.  Click-ops is more a joke term for the laziest way to build infrastructure and we need to make it sound modern.  IBM's offering, well if you are a partner, you cloud go with this option but it is aimed more a large business partners.  IBM's cloud is IaaS focused, with some PaaS offerings but once again I'm not an expert.

AWS, has always been really easy to use.  It is big and complex like Azure with many offerings.  Basically, I'd choose AWS if the organisation was already using it and the people in the org know have experience with AWS.  AWS originally was aimed at the B2C/startup market but was first to market at scale.

Azure, so in my world Azure and O365 feel like the dominant player but the diagram below provides a great insight into the relative size of the Cloud infrastructure market.  Azure SaaS offering O365/M365 is also huge and hosted on Azure.   Azure security is well thought out and their thinking on BYOK and geo-location appear to be important.  Microsoft offer Arm templates and DSC for configuring environments, they are also adding Bicep which is an abstract layer that will run ARM templates into Azure.

There is good resource CloudWars.co that goes into looking at the various cloud providers.  My current take away is Amazon is the biggest player in the IaaS field.  Azure has IaaS, a large PaaS offering and a massive SaaS (including Dynamics and O365) offering (Amazon has no equivalent).  I am focused on PaaS solutions for my customers so as to remove the infrastructure and process overheads of IaaS.

Off the top of my head reasons for moving and objections I hear for the cloud regardless of platform:

Why Cloud:

  1. Save Money
  2. More Secure
  3. Fast Delivery/More Agile/Easy to scale/Increase business resilience
  4. Eco-friendly

Challenges:

  1. Lack budget
  2. Spiraling costs
  3. CAPEX model vs OPEX is business common norm that some business find difficult to switch
  4. Resources/Skills
  5. Believe security is an issue/Don't trust the Cloud
  6. Migrate legacy apps (for me don't move to the cloud unless you get significant advantage)
